Stable Watertight Plastic Junction Box Formed Sealing Ring CNC Technology

Product Categories
Yueqing Xingyang Electronic Co.,ltd
Contact Now

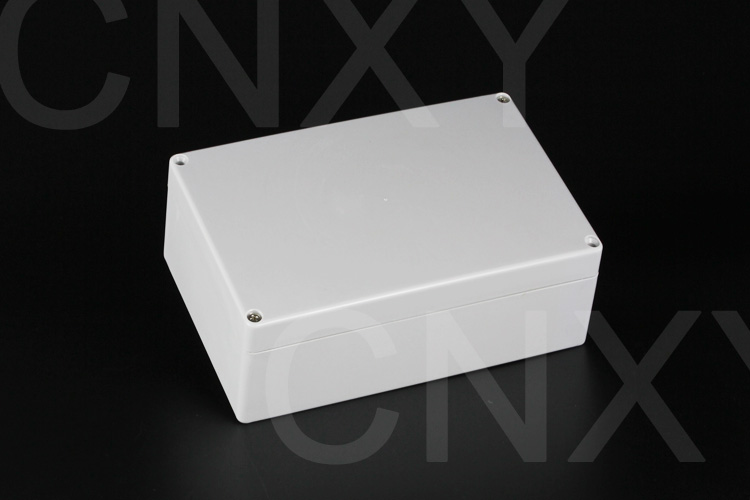

Stable Watertight Plastic Junction Box Formed Sealing Ring CNC Technology

Brand Name : CNXY

Model Number : M1-201205G

Certification : CE, RoHS

Place of Origin : China

MOQ : 10

Payment Terms : T/T, Western Union, paypal

Supply Ability : 1000pcs per week

Delivery Time : samples 2-3 working days, large quantity 7-20 working days

Packaging Details : common carton

Material : ABS, PC available

IP grate : IP65

Color : grey

Size : 200*120*56mm

OEM : Hole drilling, color, logo printing and so on

Sealing : formed sealing ring, need inserting by hand

Contact Now

Stable Watertight Plastic Junction Box Formed Sealing Ring CNC Technology

Our Enclosures are designed to meet the highest standards of protection demanded by electrical and electronics designers, serving both industrial and commercial markets. They are the ideal choice for housing electrical and electronic equipment of high value with better anti-corrosion performance ( protect instruments even under the adverse environment).
Material: ABS, PC, PG, PBT available.
Protection rank up to IP 65.
Carried Standard: EN60529 IP65.
Working temperature: -20 oC to 120 oC.
Transparent cover and nontransparent cover optional.
Full range of sizes available.
Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing, power coating and etc.

Size

Model Dimension(mm) Quantity/ctn
M1-060503G 64*58*35 560
M1-060503T
M1-080503G 83*58*33 480
M1-080503T
M1-080805G 83*81*56 216
M1-080805T
M1-100605G 100*68*50 280
M1-100605T
M1-110905G 115*90*55 162
M1-110905T
M1-121209G 120*120*90 99
M1-121209T
M1-150904G 158*90*40 165
M1-150906G 158*90*60 102
M1-150906T
M1-160405G 160*45*55
M1-161109G 160*110*90 42
M1-161109T
M1-161609G 160*160*90 33
M1-161609T
M1-201205G 200*120*56 58
M1-201205T
M1-201207G 200*120*75 80
M1-201207T
M1-201211G 200*120*113 45
M1-201211T
M1-231507G 230*150*87 36
M1-231507T
M1-241609G 240*160*90 23
M1-241609T
M1-241612G 240*160*120 28
M1-241612T
M1-261806G 263*182*60 46
M1-261806T
M1-261809G 263*182*95 21
M1-261809T
M1-261812G 263*182*125 22
M1-261812T
M1-281913G 280*195*135 18
M1-302814G 300*280*140 8
M1-322411G 320*240*110 14
M1-322411T
M1-322414G 320*240*140 12
M1-322414T
M1-322415G 320*240*155 10
M1-382610G 380*260*105 12
M1-382612G 380*260*120 12
M1-382614G 380*260*140 10

Sizes available.

Details:

Stable Watertight Plastic Junction Box Formed Sealing Ring CNC TechnologyStable Watertight Plastic Junction Box Formed Sealing Ring CNC TechnologyStable Watertight Plastic Junction Box Formed Sealing Ring CNC Technology

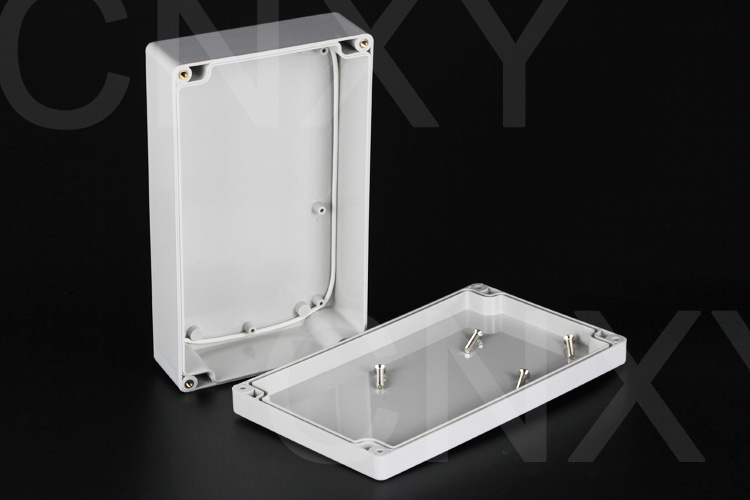

  1. A white gasket is put inside the box. It needs inserting by clients. And we provide hand-inserting service,also machine sealing. Latter is recommend.
  2. In the bottom of the box, there is mounitng stud for mounting terminals, pcb, and other components.
  3. Steel mounting plate available.

Our service

  1. Customers' logo can be made by laser,engraved,embossed,transfer printing etc.
  2. According to customers' requirement,we can punch on the box with any size and shape holes. Any colors all can customized.
  3. We can installate the complete junction box with cable joint,industrial plug,circuit breaker,terminal and etc,more details,please contact us.

FAQ

Q:Are you a factory or trading company?
A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.
Q: Could I put my own logo on it?
A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
