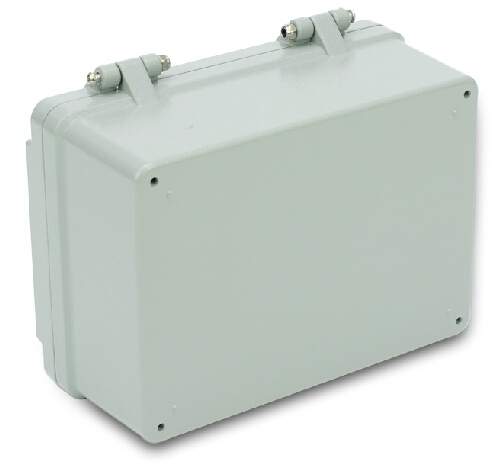

Waterproof Hinged Aluminum Junction Box M4 181308 With Screw Thread
Our aluminum enclosure are designed to meet the highest standards of protection demanded by electrical and electronics designers, serving both industrial and commercial markets. They are the ideal choice for housing electrical and electronic equipment of high value with better anti-corrosion performance ,protect instruments even under the adverse environment.
Designed for water-proof and dust-proof, IP 67
Applied for the circumstances:subzero 40centigrade to 120centigrade
Corrosion resistant
Standard item no holes, we can make holes if the customer provide drawing for hole
dimensions and locations
Sizes available.
| Model |
Size |
| M4-060503 |
64*58*35 |
| M4-120805 |
120*80*55 |
| M4-120805-2 |
120*80*55 |
| M4-130805 |
135*85*56 |
| M4-120805-3 |
125*80*58 |
| M4-181207 |
188*120*78 |
| M4-181207-2 |
188*120*78 |
| M4-100605 |
100*68*50 |
| M4-221405 |
222*145*55 |
| M4-221405-2 |
222*145*55 |
| M4-221407 |
222*145*75 |
| M4-221408 |
222*145*80 |
| M4-110603 |
111*64*37 |
| M4-181405 |
180*140*55 |
| M4-090303 |
90*36*31 |
| M4-221507 |
228*150*75 |
| M4-201307 |
200*130*78 |
| M4-181308 |
185*135*85 |
| M4-221509 |
220*155*95 |
| M4-251808 |
250*185*88 |
| M4-251909 |
250*190*90 |
| M4-080706 |
80*75*60 |
| M4-170805 |
175*80*56 |
| M4-170808 |
175*80*80 |
| M4-250806 |
250*80*60 |
| M4-250808 |
250*80*80 |
| M4-110605 |
115*65*55 |
| M4-161006 |
160*100*60 |
| M4-151008 |
150*100*80 |
| M4-110905 |
115*90*58 |
| M4-110906 |
115*90*60 |
| M4-251208 |
250*120*82 |
| M4-321209 |
320*120*90 |
| M4-361609 |
360*160*95 |
| M4-101006 |
100*100*60 |
| M4-141407 |
140*140*75 |
| M4-141004 |
145*100*45 |
| M4-121208 |
120*120*82 |
| M4-161607 |
160*160*70 |
| M4-161609 |
160*160*90 |
| M4-161608 |
160*160*86 |
| M4-241607 |
240*160*75 |
| M4-241610 |
240*160*100 |
| M4-261807 |
265*185*75 |
| M4-261809 |
260*185*96 |
| M4-261812 |
260*185*128 |
| M4-302110 |
300*210*100 |
| M4-302110 |
300*210*130 |
| M4-342309 |
340*235*95 |
| M4-342312 |
340*235*120 |
| M4-342313 |
340*235*135 |
| M4-342316 |
340*235*160 |

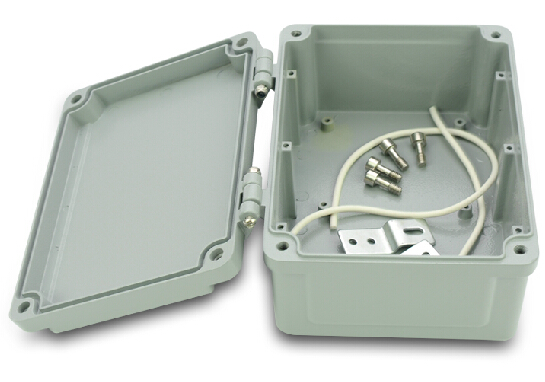

Details:
1Screw holes with barrel,in case of sliding for frequent use
2The mounting holes at the bottom with screw thread, easy to install mounting plate, din rail, pcb boards and so on.
3Mounting plate available according to customer’s requirement
4The mounting holes at the back of box help the fixation with brackets, (some with screw thread, some without.)
Our service:
1.Any shape hole could be drilled by laser cutter . (Grand connected for wire through)
2.Silk-screen and Laser printing could be done. (Show your company logo and name)
3.Mounting place could be done. (Install other electronic enclosure)
4.The material and color of the products could be modified as required.
5.New mould for your customized design could be accepted.
Application
Ideally suited for mounting printed circuit boards or used as junction boxes. Also suitable for mounting modular electric installation devices.
Product designed to meet IP66. Lap joint construction and rubber sealing strip between lid and base provides protection against access dust and water.
Besides, with futures of shock resistance, rustproof, long lifetime, good insulating property, easy machining, the product are widely used in electronic and electrical industry.
